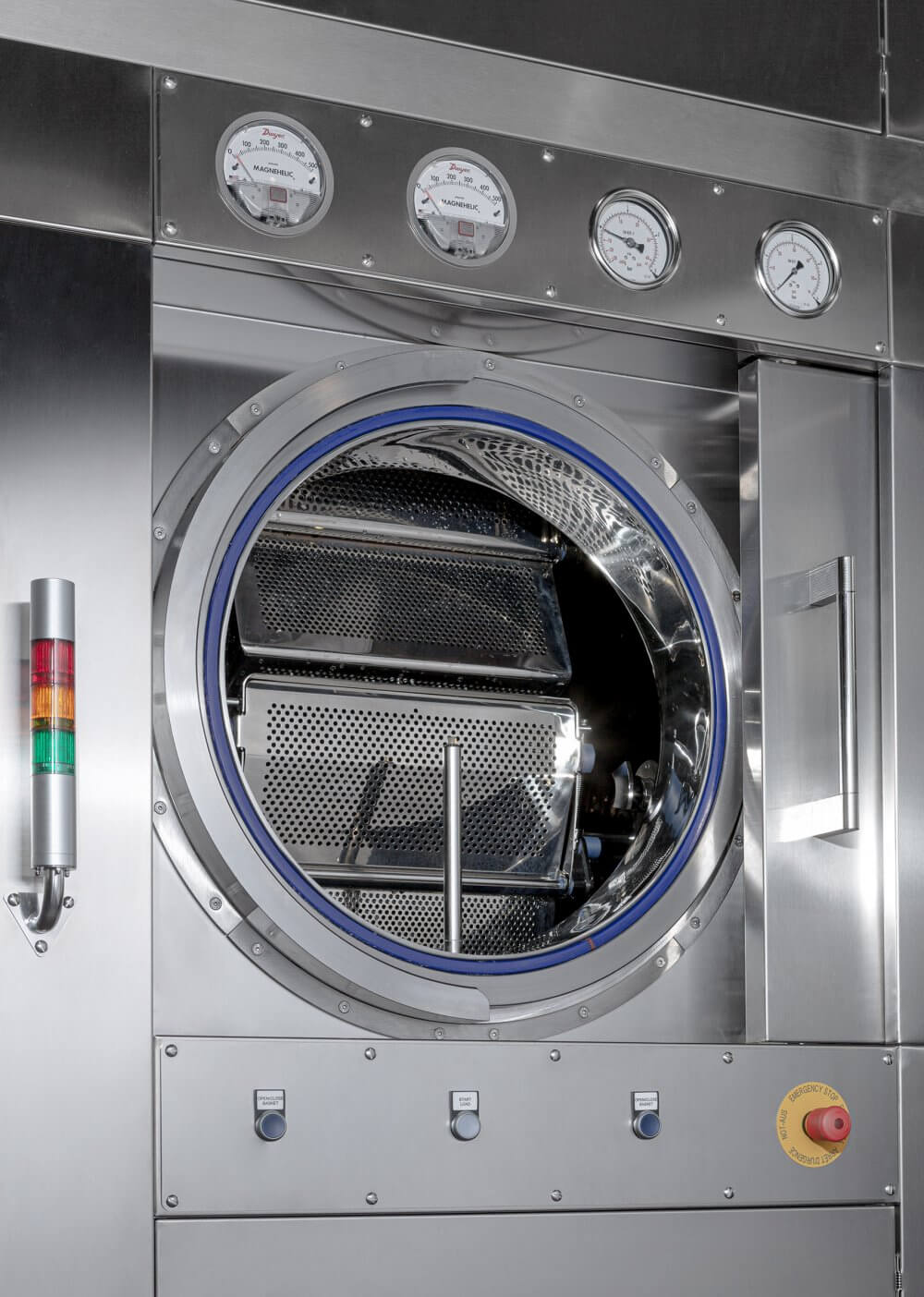

- Double-walled circular chamber.
- Flat-type all-round cavity to uniformly and quickly heat the load.
- Two 1.5” tri-clamp ferrules are welded to the chamber for validation purposes (temperature uniformity mapping and pressure tests).
- The piping and air ducts are made entirely from 316L stainless steel with sanitary fittings (tri-clamp ferrules and hygienic flanges).
- Chamber with perfect drainage.
- The equipment body is supported by a base that evenly distributes the floor loads.
- All of the chambers internal surfaces are mechanically polished and then subjected to chemical degreasing, pickling and passivation treatments. Surface finish: ≤ 0.35 micron.

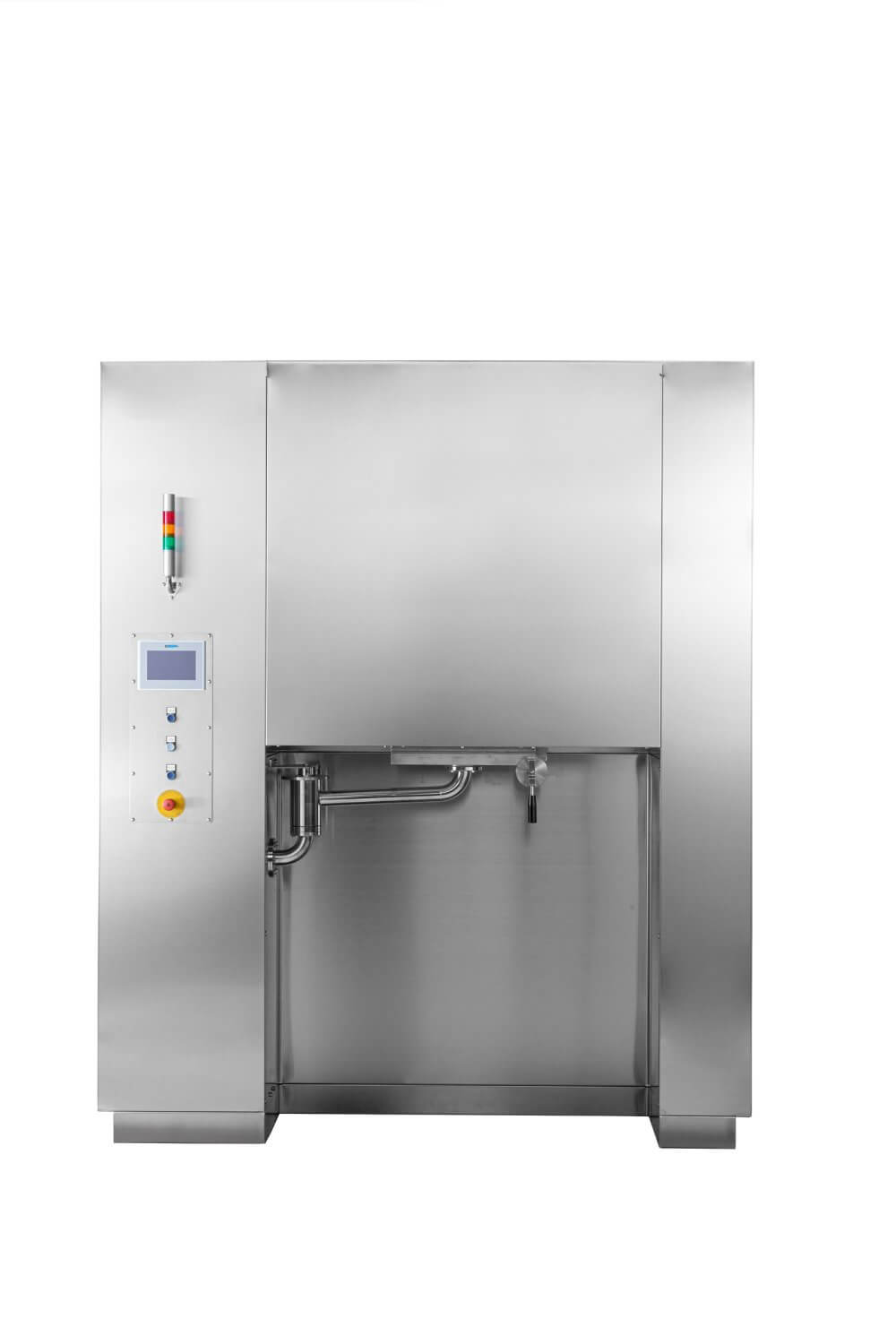

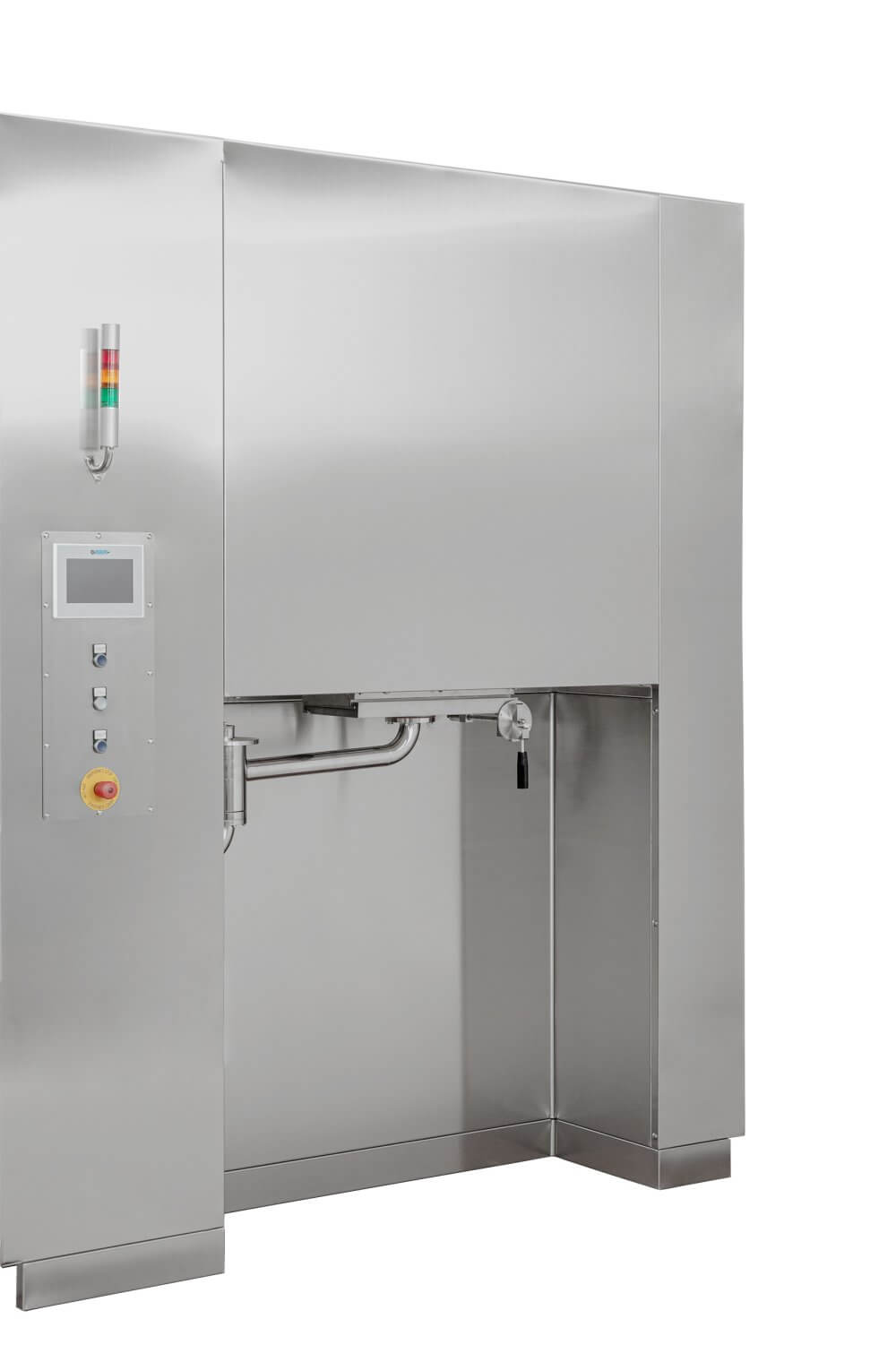

- The unloading-side door hopper has been designed to be completely sealed with the “bio-seal” clean chamber.
- Various fully automatic product unloading options.
