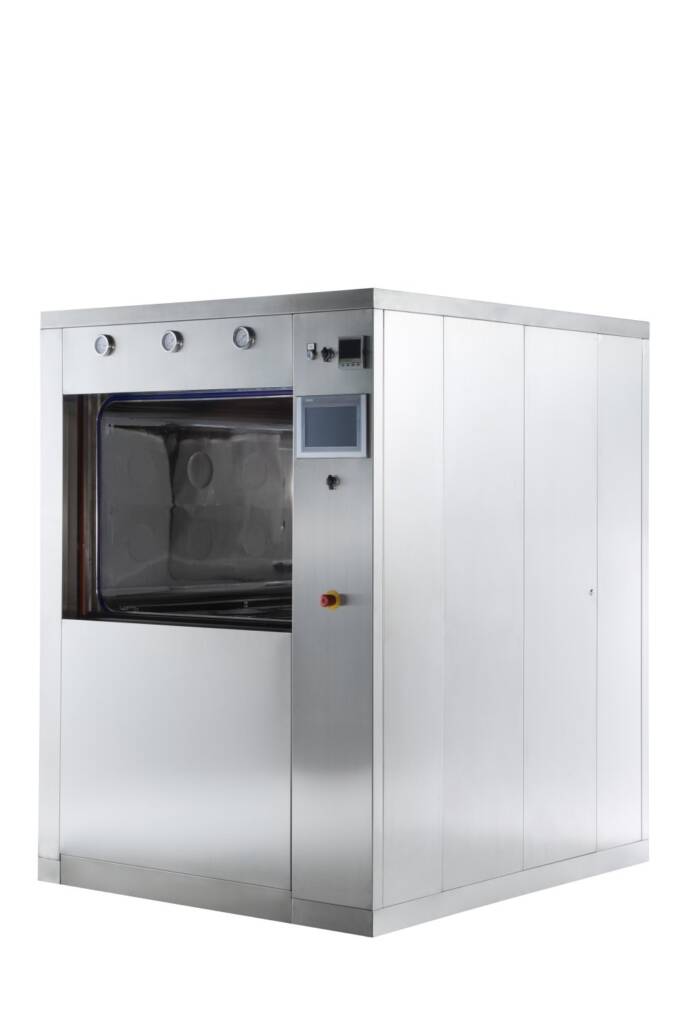

- Double-walled square or rectangular chamber, made entirely from 316L or 316Ti stainless steel.
- Ashlar-type total cavity comprising 304 or 316L/316Ti stainless steel.
- Piping made entirely from 316L or 304 stainless steel.
- Any surfaces that come into contact with the product and process fluids are mechanically satin-finished to a roughness level of less than 1 micron.
- Manual folding chamber doors or vertical/horizontal automatic sliding doors.
- Pneumatically pressurised chamber door sealing gasket (with process air).
- 316L/316Ti/304 stainless steel components and tools, in addition to elastomers manufactured in compliance with FDA 21 CFR, Part 177.
- The chamber, heads, pipes, components and instruments are properly insulated by a cutting-edge material.
- Zone separation by means of a 304 or 316L/316Ti stainless steel “bio-seal” septum (BSL 3 and BSL 4).
- “Bio-seal” flange to connect to the VHP isolator.

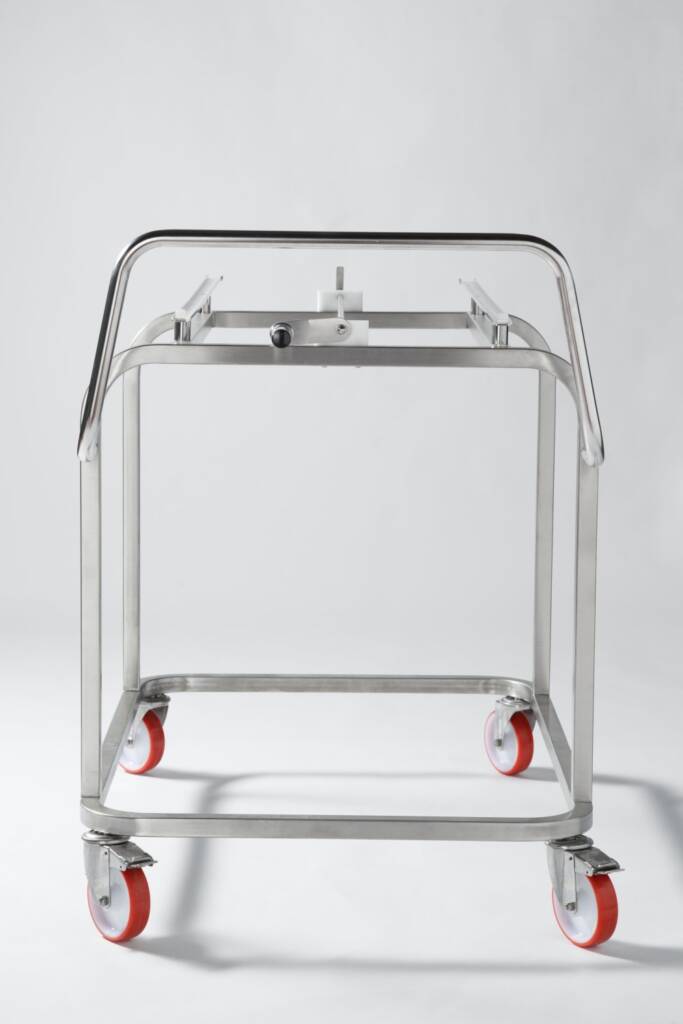

- Manual or fully automated ergonomic product loading and unloading solutions.
- Floor or elevated loading solutions.
