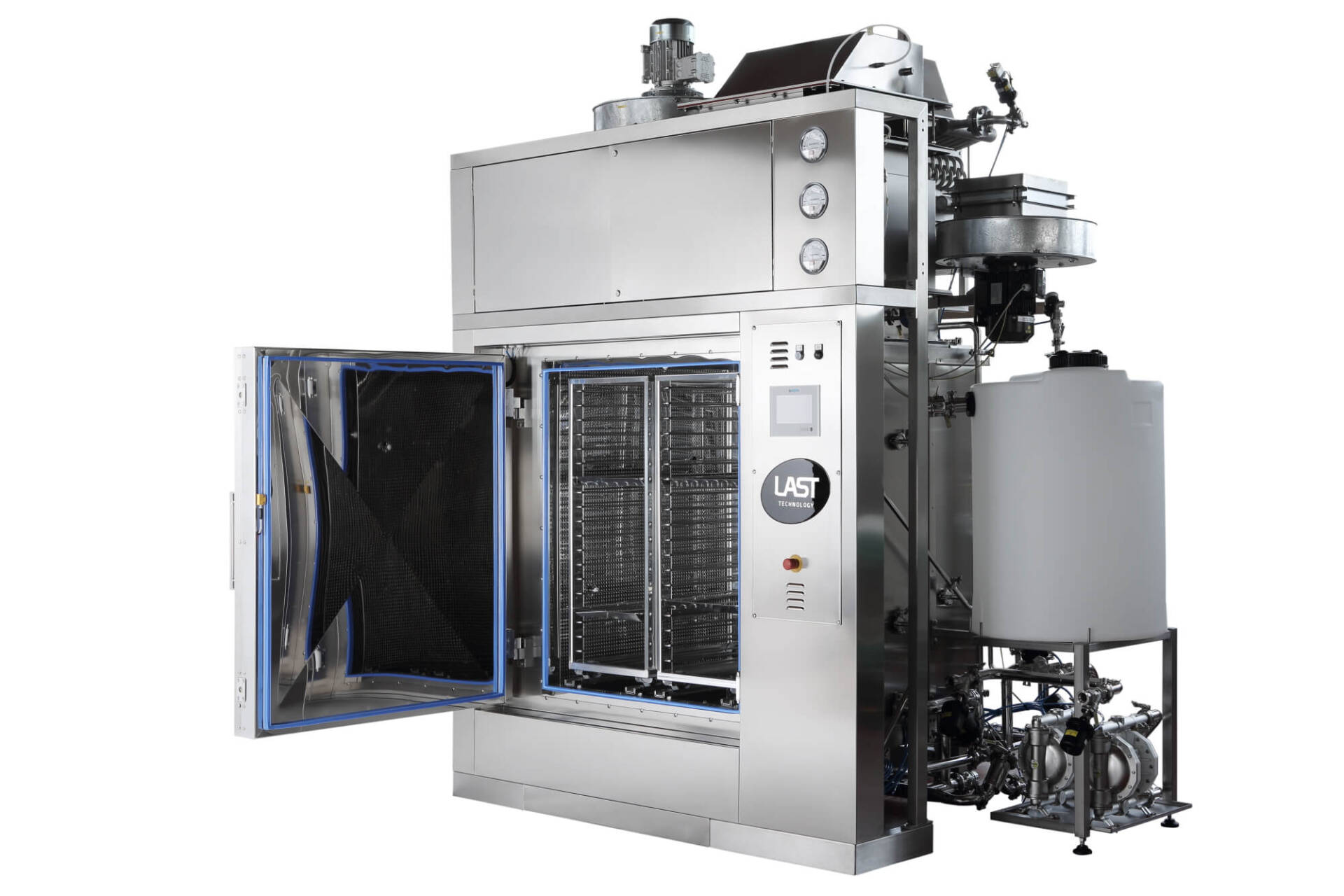

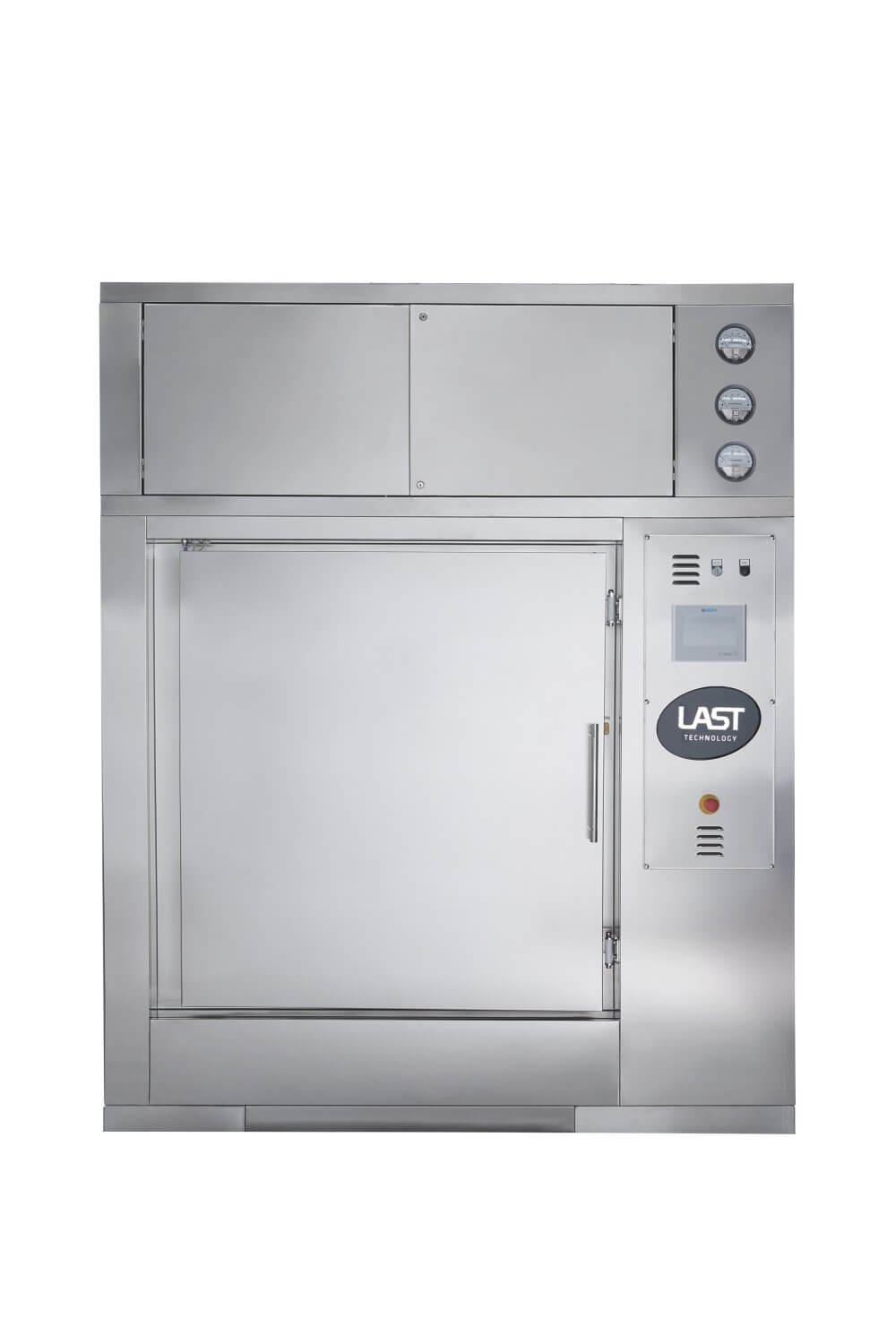

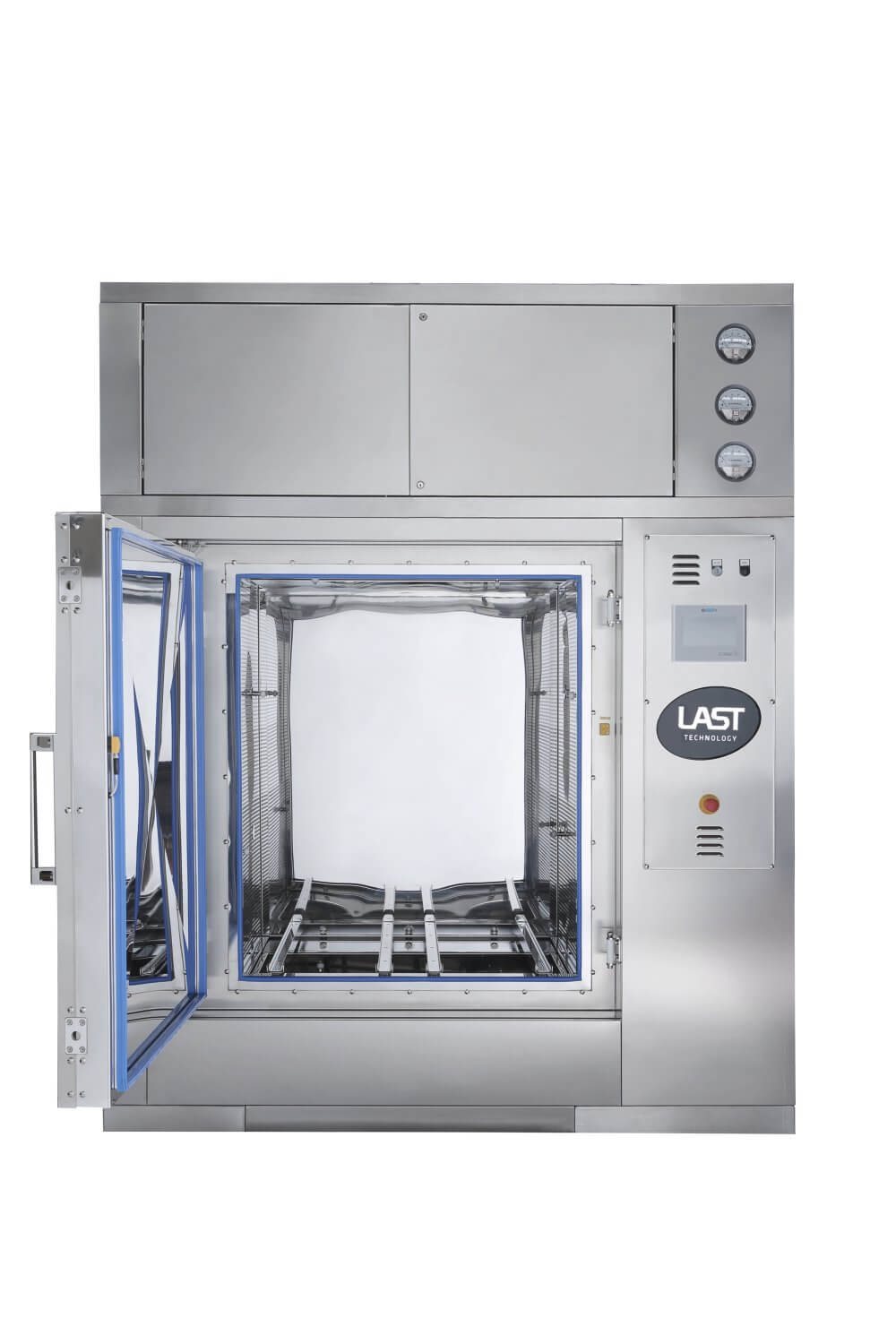

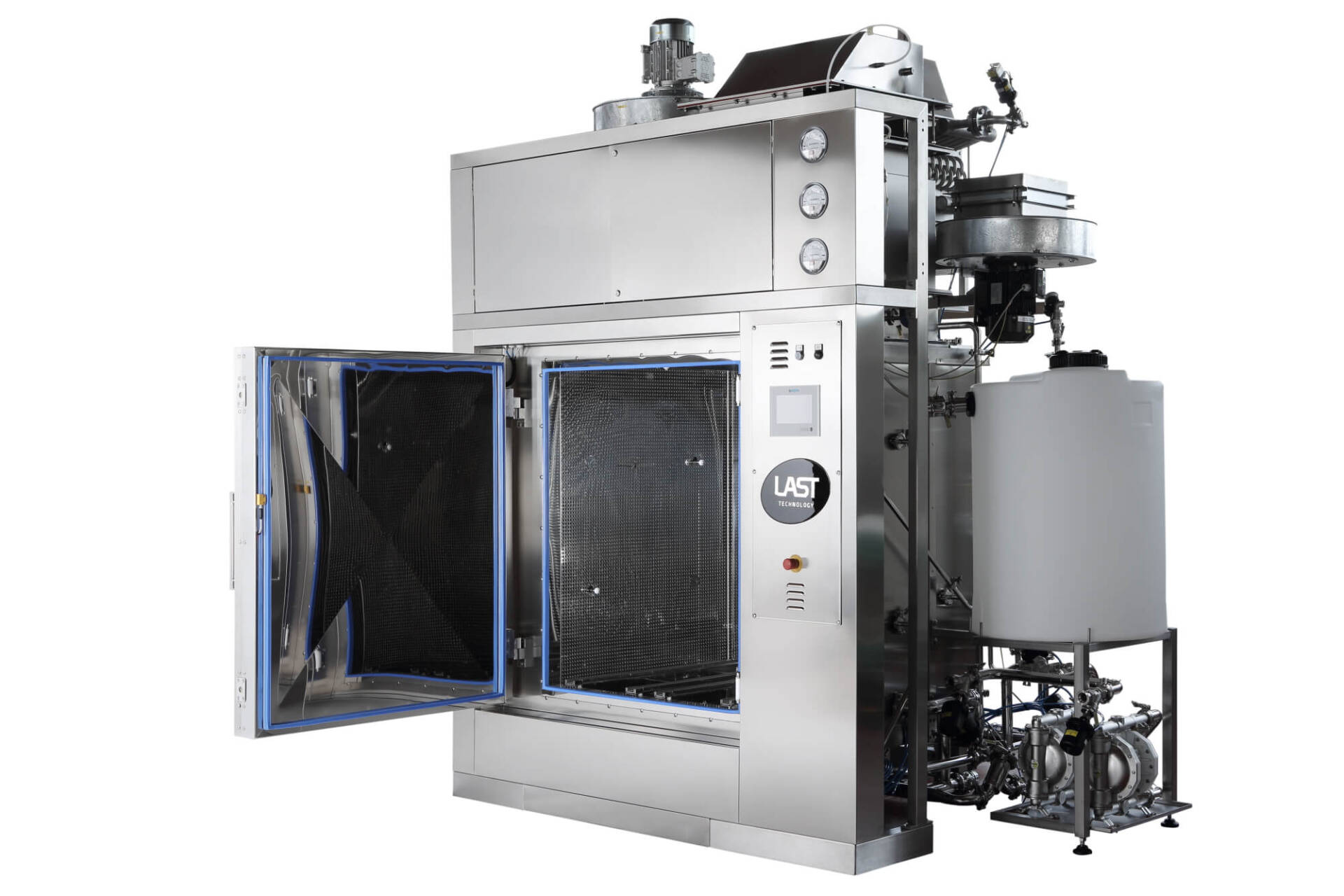

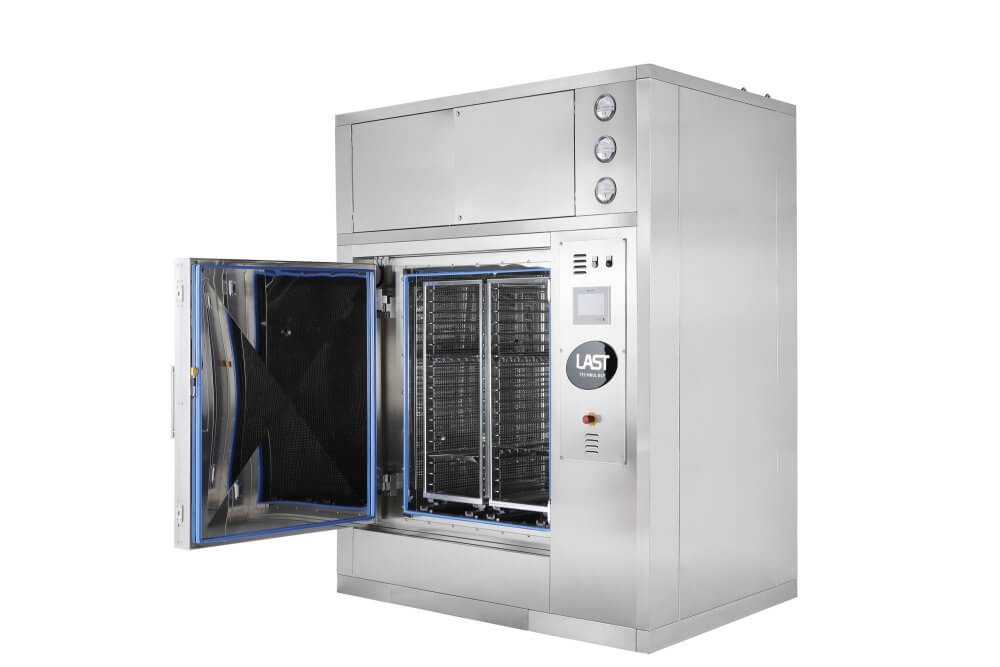

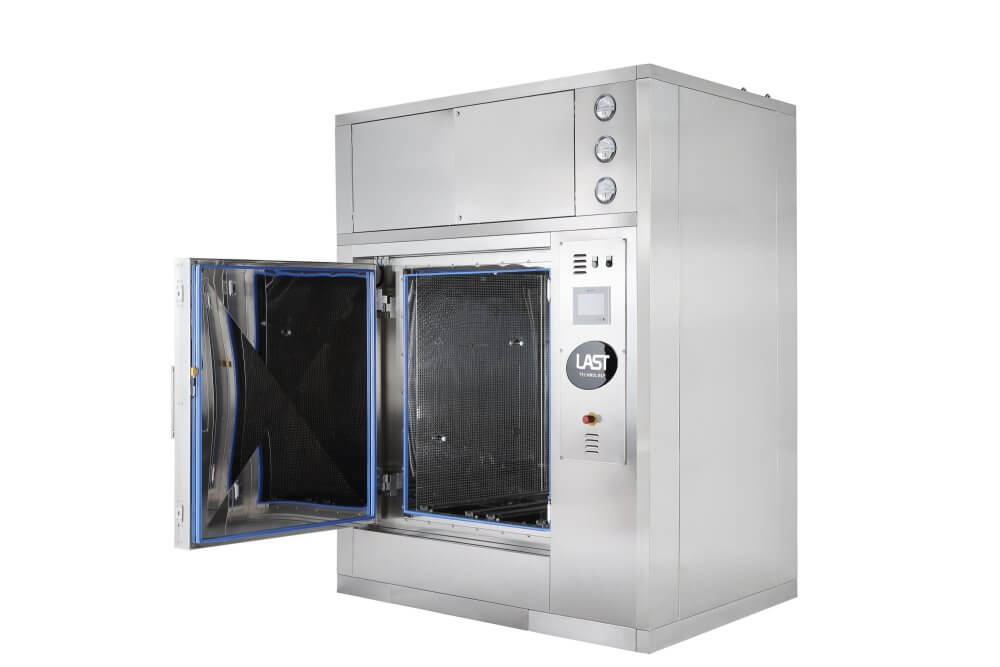

- Quadrangular or rectangular chamber and hatches (doors).

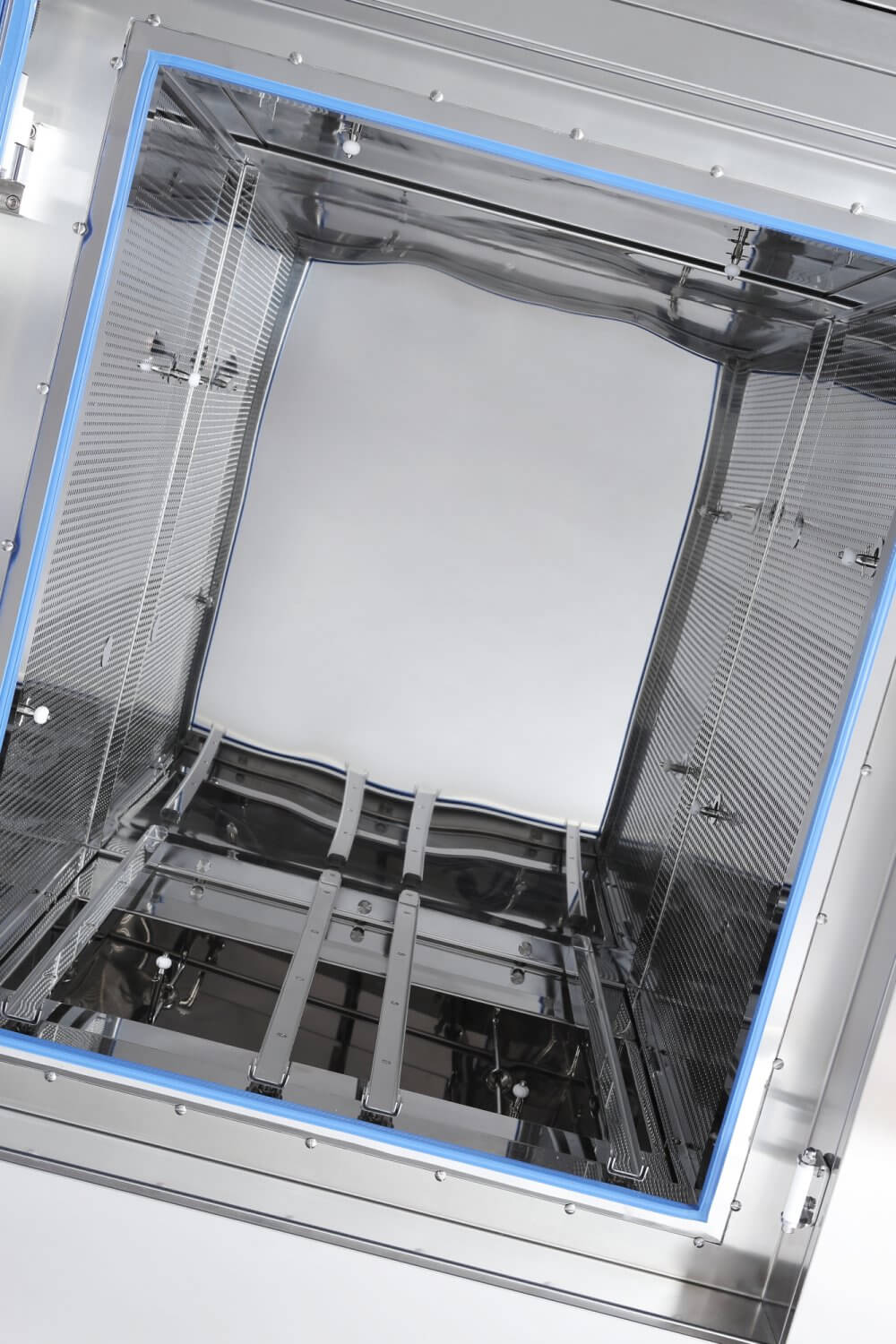

- Fully welded one-piece chamber with rounded corners to ensure excellent hygiene levels and facilitate internal surface cleaning.
- The mechanical construction is resistant to temperatures above 350°C.
- The air is uniformly distributed inside the chamber by means of adjustable deflectors.

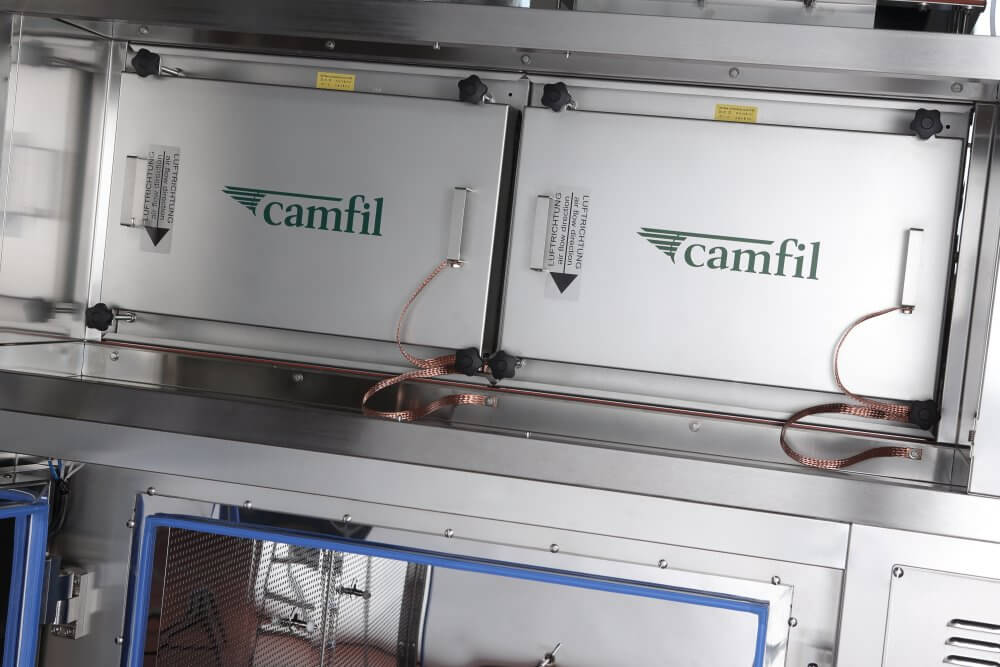

- The inlet and expulsion air handling units (heating, cooling and filtration) are located at the top of the drying chamber.

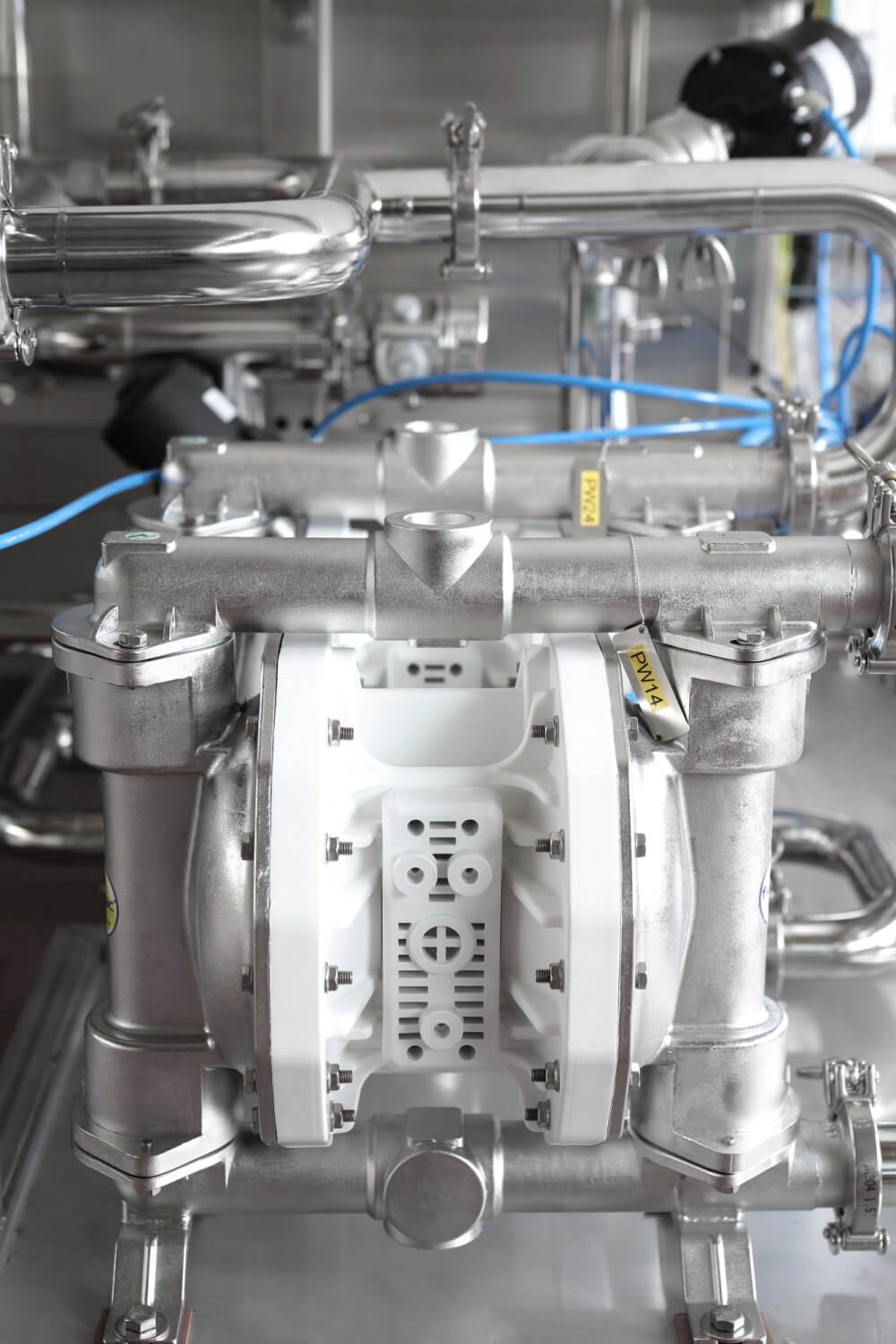

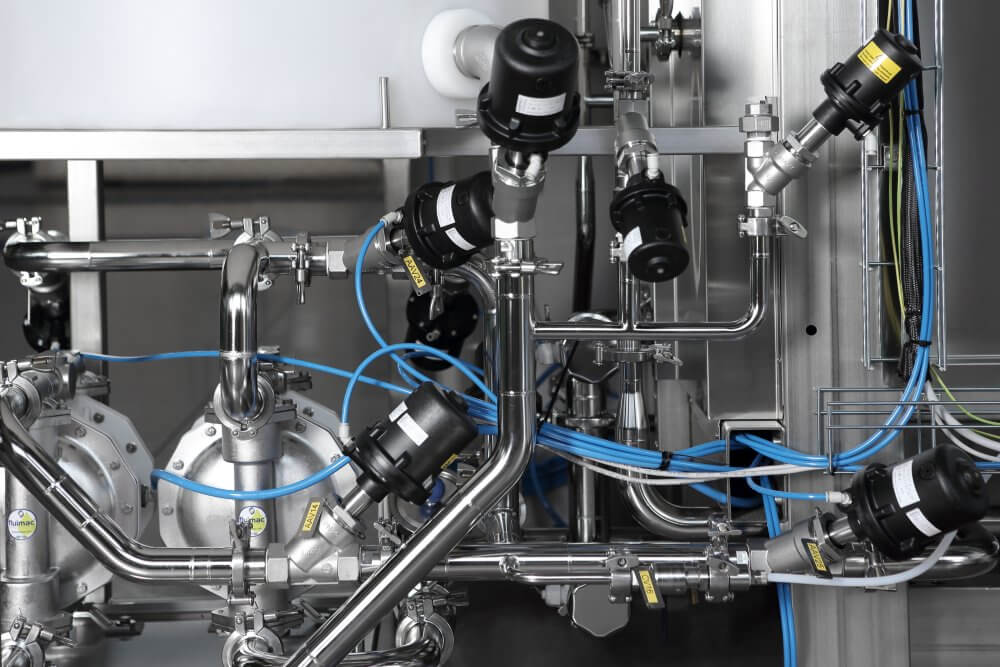

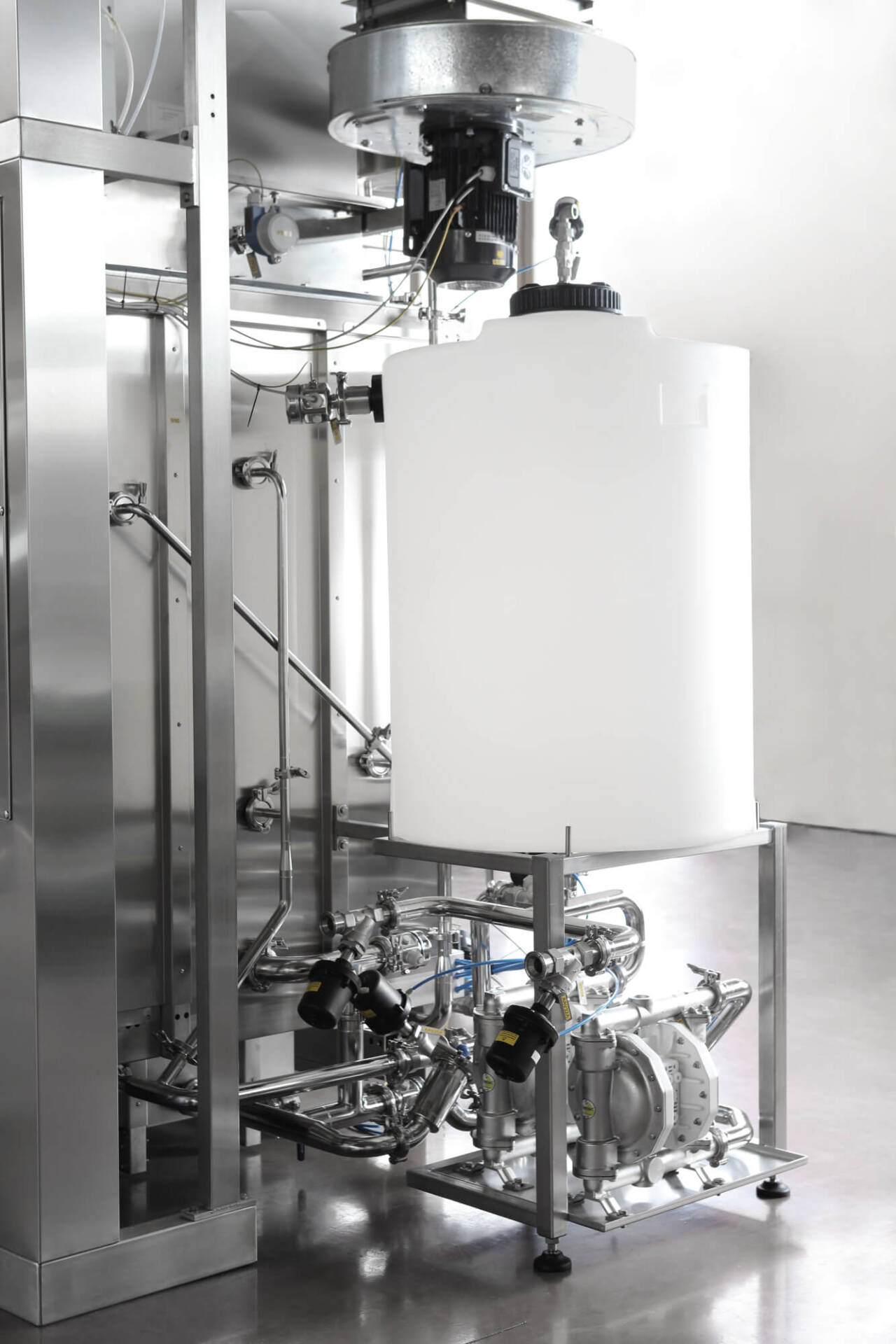

- The integrated chamber interior washing system (CIP) and the ATEX version of the equipment are offered as optional extras.
- The chamber is positioned on a tubular-type base to evenly distribute the weight on the floor.

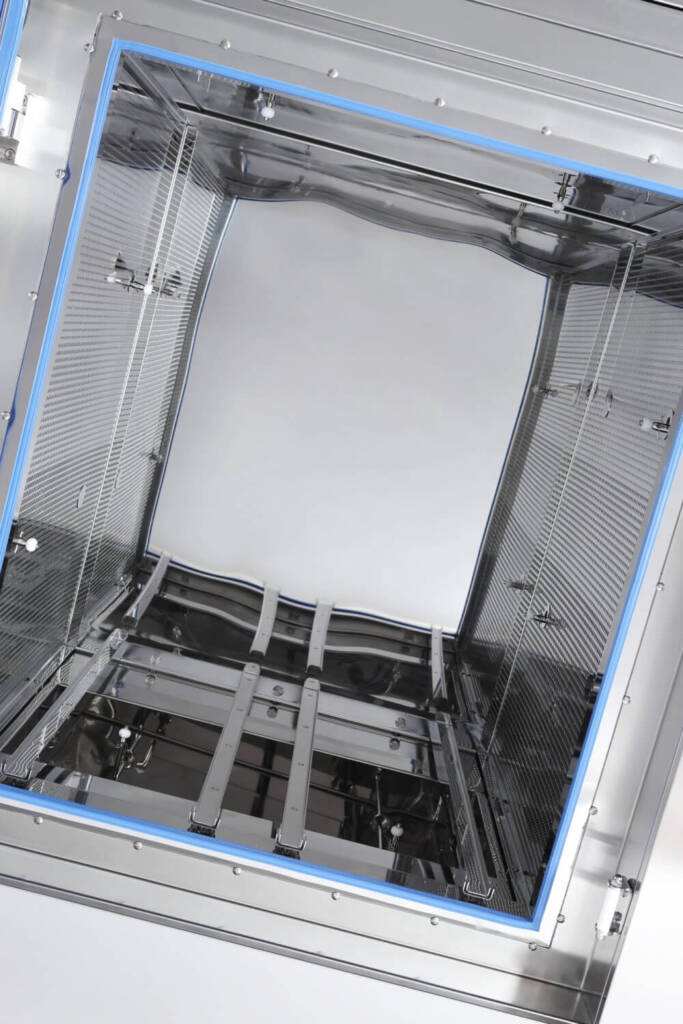

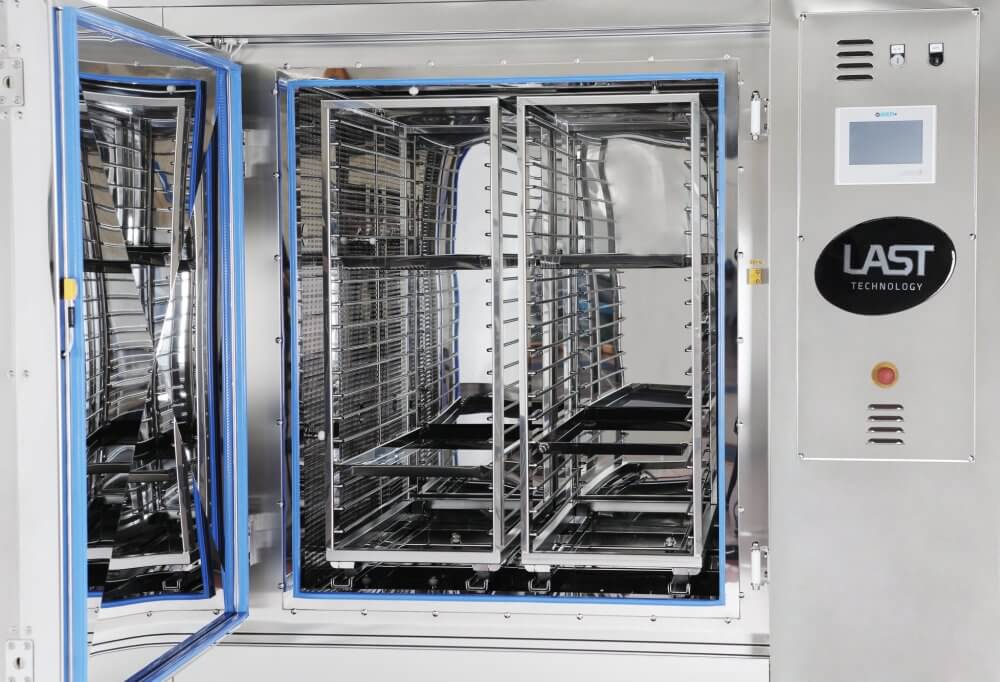

- The loading trolley-inserting and removing guides are positioned on the bottom of the chamber; they are also height-adjustable.
- Two 1.5” tri-clamp ferrules are welded to the chamber for validation purposes (air humidity measurements and temperature uniformity mapping).
- All of the chambers internal surfaces are mechanically polished. Surface finish: ≤ 0.35 micron.
